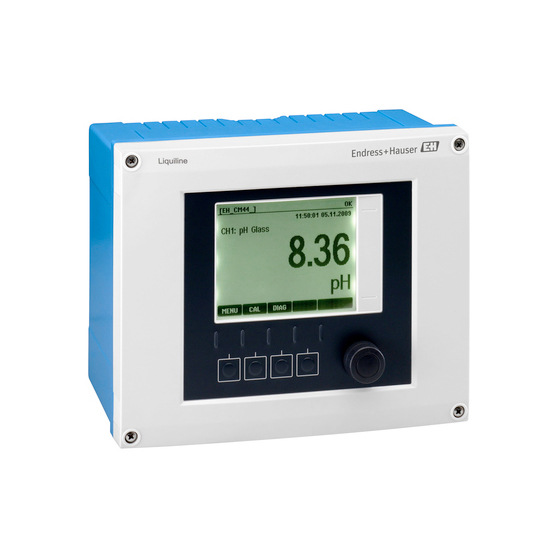

E+H双通道通用变送器CM442-AAM2A2F010A+AK

1-/2-通道变送器
Liquiline CM442
E+H双通道多参数通用变送器CM442-AAM1A2F010A是一款高性能的产品,不仅操作简便,而且能确保过程安全性,是一流的变送器平台。适用于所有行业。Liquiline CM442 数字式多参数变送器适用于所有过程监测和控制应用。1-/2-通道控制器通过无缝系统集成,操作简单,减少备件存储,节约时间和成本。
E+H双通道多参数通用变送器CM442-AAM1A2F010A优势
•  简单灵活:一台控制器可用于所有的参数测量,直观的用户界面,自动传感器识别,预标定Memosens传感器实现即插即用。
•  适应性强:通用型模块,减少备件库存,随时轻松扩展至八通道测量系统
•  无缝系统集成:独特的通信标准组合,适用于各种类型的集散控制系统(DCS)
•  简单并安全的调试:通过SD卡与其他设备通信,设置方便,节约时间和成本
•  过程控制和安全性:通过内置网络服务器,操作者可以进行诊断数据远程访问、参数设置,或者通过任何网络浏览器访问设备参数 - 甚至可以通过智能手机进行访问。
E+H双通道多参数通用变送器CM442-AAM1A2F010A应用领域
Liquiline CM442 多参数变送器适用于所有非防爆区域,包括以下行业及其公用工程
•  食品& 饮料
•  生命科学
•  电力 & 能源
•  水 & 污水
•  化工行业

E+H双通道多参数通用变送器CM442-AAM1A2F010A特征和规格
ORP /氧化还原电位

测量原理 紫外光(UV)光度计
应用 Modular 4 wire controller
Multichannel:1-2 digital channels for Memosens protocol
Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
Two sensors connectable in any combination

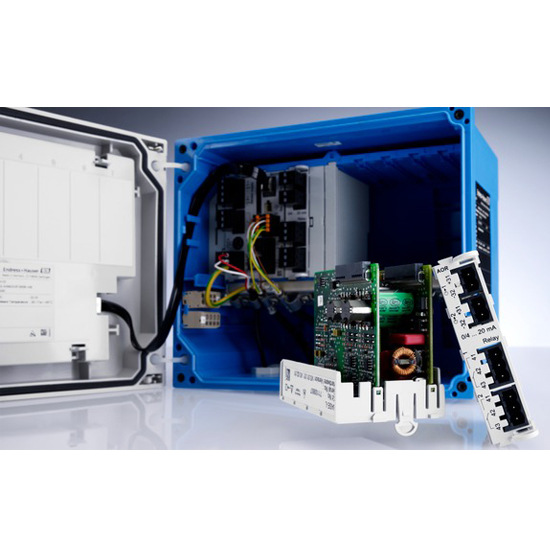

Functionality modular extendable at any time
Plug and play for modules and sensors


特点 Robust plastic housing
All non-ex applications

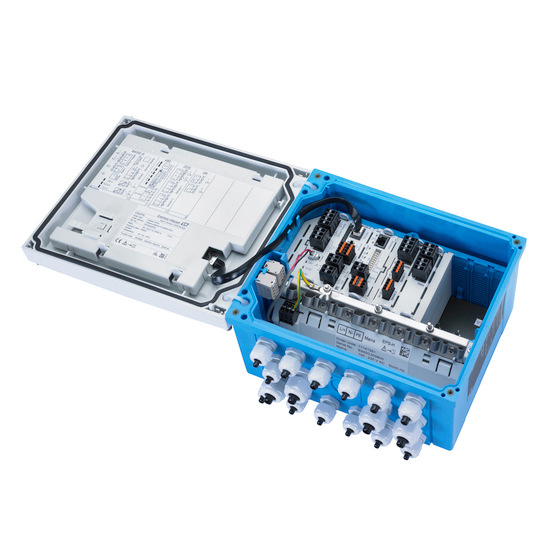

结构设计 2x Memosens input
2...4x current output
alarmrelay
2x relay
SD card for software update and copy & paste of setup


材质 Plastic (polycarbonate)

外形尺寸 237 (9.33) x 194 (7.64) x 162 (6.38) mm (inch)

过程温度 -20...60°C / 0...140°F

防护等级 IP67

输入 1...2x Memosens digital input

输出 2...4x 0/4...20 mA current outputs
alarmrelay
2x relay


pH
测量原理 紫外光(UV)光度计
应用 Modular 4 wire controller
Multichannel:1-2 digital channels for Memosens protocol
Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
Two sensors connectable in any combination
Functionality modular extendable at any time
Plug and play for modules and sensors


特点 Robust plastic housing
All non-ex applications


结构设计 2x Memosens input
2...4x current output
alarmrelay
2x relay
SD card for software update and copy & paste of setup


材质 Plastic (polycarbonate)

外形尺寸 237 (9.33) x 194 (7.64) x 162 (6.38) mm (inch)

过程温度 -20...60°C / 0...140°F

防护等级 IP67

输入 1...2x Memosens digital input 2x 0/4..20mA Input optional 2x Digital input optional

输出 2...4x 0/4...20 mA current outputs
alarmrelay
2x relay
ProfibusDP
Modbus RS485
Modbus TCP
Ethernet


余氯、二氧化氯、总氯
测量原理 紫外光(UV)光度计
应用 Modular 4 wire controller
Multichannel:1-2 digital channels for Memosens protocol
Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
Two sensors connectable in any combination
Functionality modular extendable at any time
Plug and play for modules and sensors


特点 Robust plastic housing
All non-ex applications


结构设计 2x Memosens input
2...4x current output
alarmrelay
2x relay
SD card for software update and copy & paste of setup


材质 Plastic (polycarbonate)

外形尺寸 237 (9.33) x 194 (7.64) x 162 (6.38) mm (inch)

过程温度 -20...60°C / 0...140°F

输入 1...2x Memosens digital input

输出 2...4x 0/4...20 mA current outputs
alarmrelay
2x relay


分析仪
测量原理 紫外光(UV)光度计
特点 Robust plastic housing
All non-ex applications


结构设计 2x Memosens input
2...4x current output
alarmrelay
2x relay
SD card for software update and copy & paste of setup


过程温度 -20...60°C / 0...140°F

应用 Modular 4 wire controller
Multichannel:1-2 digital channels for Memosens protocol
Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
Two sensors connectable in any combination
Functionality modular extendable at any time
Plug and play for modules and sensors


输出 2...4x 0/4...20 mA current outputs
alarmrelay
2x relay


输入 1...2x Memosens digital input

污泥界面
测量原理 紫外光(UV)光度计
应用 Modular 4 wire controller
Multichannel:1-2 digital channels for Memosens protocol
Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
Two sensors connectable in any combination
Functionality modular extendable at any time
Plug and play for modules and sensors


特点 Robust plastic housing
All non-ex applications


结构设计 2x Memosens input
2...4x current output
alarmrelay
2x relay
SD card for software update and copy & paste of setup


材质 Plastic (polycarbonate)

外形尺寸 237 (9.33) x 194 (7.64) x 162 (6.38) mm (inch)

过程温度 -20...60°C / 0...140°F
溶解氧
测量原理 紫外光(UV)光度计
应用 Modular 4 wire controller
Multichannel:1-2 digital channels for Memosens protocol
Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
Two sensors connectable in any combination
Functionality modular extendable at any time
Plug and play for modules and sensors


特点 Robust plastic housing
All non-ex applications


结构设计 2x Memosens input
2...4x current output
alarmrelay
2x relay
SD card for software update and copy & paste of setup


材质 Plastic (polycarbonate)

外形尺寸 237 (9.33) x 194 (7.64) x 162 (6.38) mm (inch)

过程温度 -20...60°C / 0...140°F

输入 1...2x Memosens digital input

输出 2...4x 0/4...20 mA current outputs
alarmrelay
2x relay
电导率
测量原理 紫外光(UV)光度计
应用 Modular 4 wire controller
Multichannel:1-2 digital channels for Memosens protocol
Multiparameter: pH, redox, ISFET, conductivity inductive and conductive, dissolved oxygen, nitrate and turbidity
Two sensors connectable in any combination
Functionality modular extendable at any time
Plug and play for modules and sensors


特点 Robust plastic housing
All non-ex applications


结构设计 2x Memosens input
2...4x current output
alarmrelay
2x relay
SD card for software update and copy & paste of setup


材质 Plastic (polycarbonate)

外形尺寸 237 (9.33) x 194 (7.64) x 162 (6.38) mm (inch)

过程温度 -20...60°C / 0...140°F

防护等级 IP67

输入 1...2x Memosens digital input

输出 2...4x 0/4...20 mA current outputs
alarmrelay
2x relay
